Mobile Fundus Imaging with Flexibility

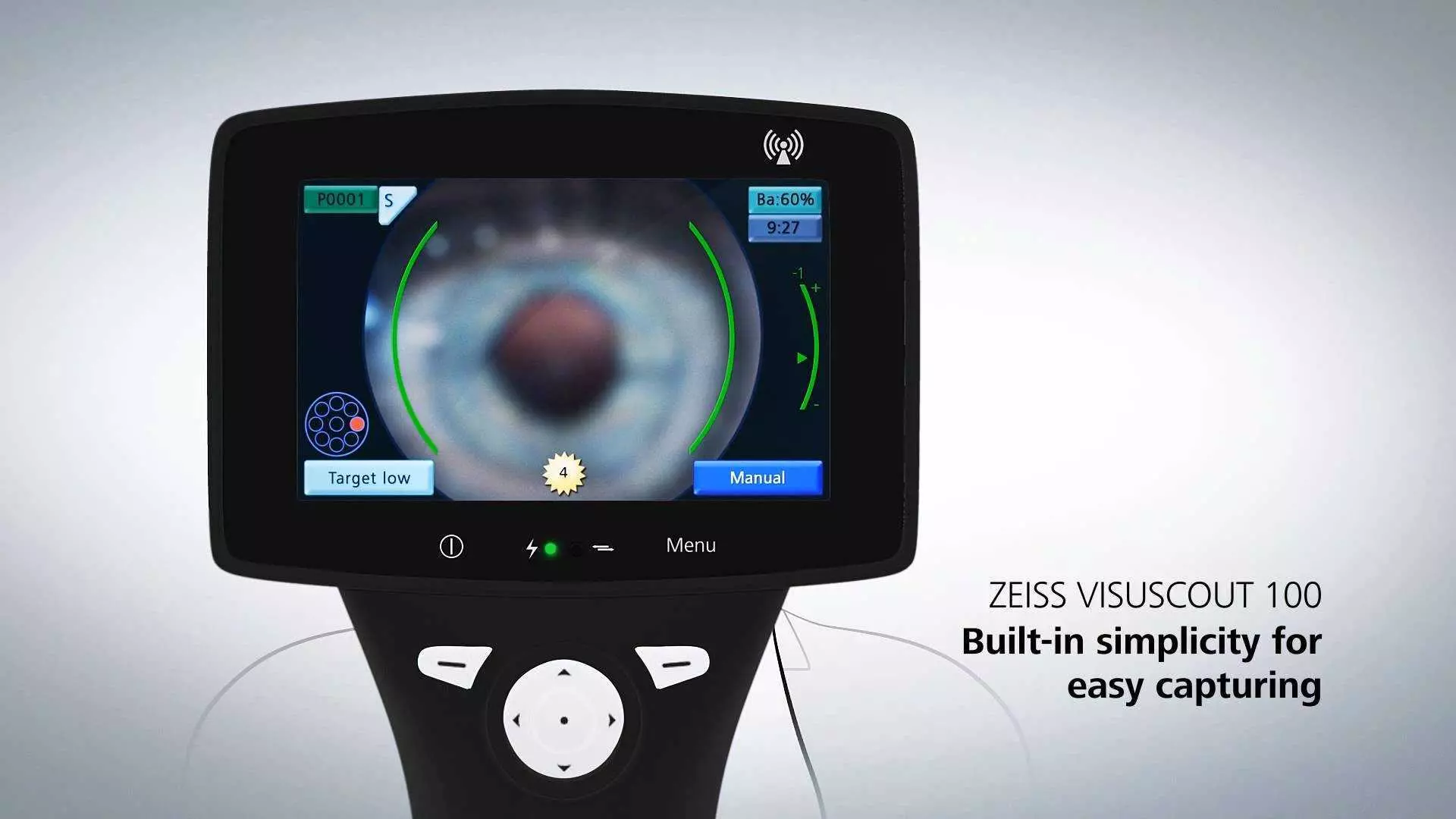

VISUSCOUT 100 Handheld Fundus Camera is Reliably detecting and tracking retinal disorders is key to ensuring high-quality care and also to maintaining the vision of your patients.
The VISUSCOUT 100 out of ZEISS allows you to do that. As a fundus camera that is mobile, it is the perfect imaging companion.
Packed with a small, rugged carrying case, the ZEISS VISUSCOUT 100 can be conveniently transported and easily fits into any practice setup. Thanks to the camera non-mydriatic performance and autofocus feature are not required. Its battery power provides added flexibility and freedom.
The WiFi performance enables the immediate transfer of pictures to a PC or mobile device.
Running the ZEISS VISUSCOUT 100 is easy and straightforward. Tests are performed and assessed without having to move the individual. Medical staff can operate the apparatus, allowing image capture.
Key Benefits :
- Wireless flexibility for fundus imaging wherever you need it
- Easy capture of images and videos in a quality normally not expected of a mobile device
- Integrates with DICOM-based data management systems using optional viewing software
- Simple to operate, even for medical staff and assistants
Zeiss VISUSCOUT 100 Handheld Fundus Camera Specifications:
|Dimensions (W x D x H)||115 x 216 x 199 mm|
|Sensor resolution / type||5 MP / CMOS|
|Charging station||100 – 240 V ~0.4 A 47 – 63 Hz, Output: 9 V, 1.1 A, 10 W|
|Battery||Rechargeable Li-Ion 3.7 V, 1950 mAh|
|Field of view||40°|
|Capture mode||Color, red-free, IR|
|Focus range||– 20 D to + 20 D|
|Fixation||9x LED, internal|
|Minimum pupil size||3.5 mm|
|Display||3.97’’, TFT-LCD, 800 x 480 px, 16.7 M colors, anti-glare coating|
|Data connectivity||USB, WiFi|
|Data formats||JPEG, MPEG4/1 (DICOM optional)|
|Memory||8 GB Micro or WiFi SDHC|
ZEISS VISUSCOUT 100 includes:
- 1 VISUSCOUT 100
- 1 charging station
- 1 transportation suitcase
- 2 eye caps
- 1 USB cable
- 1 lens cleaning cloth
