Sale!

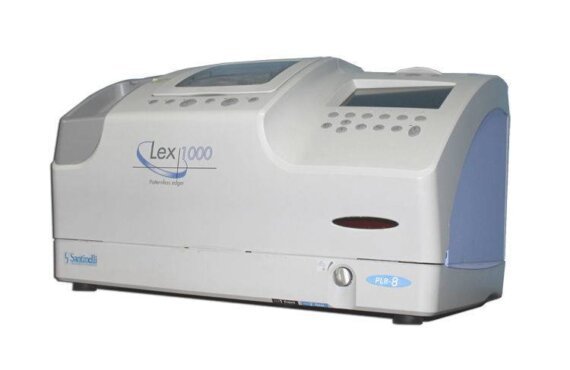

Santinelli LEX 1000 Lens Edger

$37,000.00 $17,000.00

The Santinelli LEX 1000 patternless edger has become renowned for its ability to edge high curve lenses for wrap-style frames.

In stock



Description

Santinelli LEX 1000 PLB8 Rimless Edger

Nidek’s new LEX Lens Edger Series features the highly intuitive Santinelli LEX 1000 Edger, engineered with the most advanced technology available on the market. Its unique functions enable eye care professionals to confidently handle even the most challenging jobs in-house to increase profits. It’s the world’s first retail edger to make glazing high base curve lenses simple.

The Santinelli LEX 1000 patternless edger has become renowned for its ability to edge high curve lenses for wrap-style frames.



Features:

  • Precise Grooving
    The unit provides superior groove quality with “pin-point” accuracy. The groove secures the lens flawlessly within the frame, virtually eliminating job do-overs and resulting in significant savings.
  • Click Mode Software
    The Santinelli LEX 1000 can be equipped with Click Mode™ software to create customizable, magnetic Chemistry Sunlenses for virtually any frame. This technology automates the process and allows you to differentiate your practice and increase profits with the click of a button.
  • Today’s Lenses
    The Santinelli LEX 1000 was designed with an Advanced Soft Grind Mode to take on today’s advanced super-hydrophobic A/R coated lenses, maintaining axis to avoid slippage. For small “B” processing, the Lex 1000 can edge lenses with a narrow corridor of 15.5 mm.
  • Ease of Use
    The Santinelli LEX 1000 is a sleek, ergonomically designed edger which features Navigation Operation technology and a sensor status troubleshooting feature.
  • Drilling Add-On
    Incorporate drilling with the addition of the compact Lex Drill which can interface seamlessly with the Lex 1000. This drill processes complex drilling jobs automatically, with extreme precision. The Lex Drill can efficiently process twin holes, rectangular holes, notches, jewel holes, and countersunk holes automatically. With the Lex Drill, holes are drilled 90 degrees perpendicular to the front based curve of the lens automatically. Custom angling can be adjusted from 0 to 30 degrees.

Specifications

  • Dimensions: 20¾” W x 19½” D x 13½” H
  • Weight: 92 lbs (S and L modes) / 80 lbs (NT model)
  • Power Supply: AC AC115V, 50/60 Hz
  • Power Consumption: 1.3 kVA max.

Add on Drill: upgraded system to rimless glazing at any time of your choice with the retro-fit LEX Drill.
High-quality drilling: 3D drilling from 0 to 30 degrees made easy, even challenging drillings such as twin holes, slots, rectangular holes, jewel holes, or countersunk holes.
Slim design: at only 14.5cm wide the LEX Drill can fit into the smallest of Laboratories or Workshops.

Operation:

Information Bar: Even first-time users can efficiently operate the LEX1000 using the Information Bar, which provides useful “next-step” information.
3-D Bevel Simulation: Sophisticated 3-D bevel simulation allows you to check the placement of the slope as if viewing the actual lens from any selected angle.
Color-coded Lens Identi

About the ICE-Mini Blocker

Blocking is easy and quick. For accurate and easy blocking for the operator, the 3-pin support lens is flexible and holds the lens from the top. The user-friendly color LCD touch panel is 8.4-inch and is easy to operate and offers clear display. Networking capability is versatile and the direct connection to the 2 lens edger is easy for the ICE mini. Blocking is as easy as 1-2-3 by the NEW ICE-Mini from NIDEK.

Step 1: On the table place the marked lens.
Step 2: Input all data on the LCD touch panel such as the type of lens, frame, grinding mode and the data of the lens layout that includes PD, FPD, size and height of optical center is the data to be input.
Step 3: Block with blocking arm.

Color-coded Lens Identification: To aid the lens edging process, the display of the Lex1000 utilizes a color-coding system adapted from navigational light colors, to identify right and left lenses: green represents the right lens and red represents the left lens. Red and green cups (blocks) are included. You can avoid processing the wrong lens by following the color-prompted indicator on display.

Nava Ophthalmic has Completely refinished this Edger

Unlike others, the machine displayed in the pictures is the machine you’re purchasing!

Cut Count: 17,785 Cuts

Drill Count: 289 Drills

Condition: 99%

Operations: 100%
Accessory Kit: 100%
Blocker: ICE-Mini
Tank and Pump Water System: 100% (Included)
Pliable Cup Blocks: 20
Pliable De-Blocker: YES
Other: LEX1000, LEX Drill, and ICE-Mini PDF Operational Manual
Santinelli Retail Price is over: $37,000

Reference Library

Santinelli LEX 1000 Len Edger Brochure
