Beschreibung
The Tomey RT-7000 Autorefractor Keratometer Topographer provides patients with a comprehensive inspection without the hassle of moving between stations.

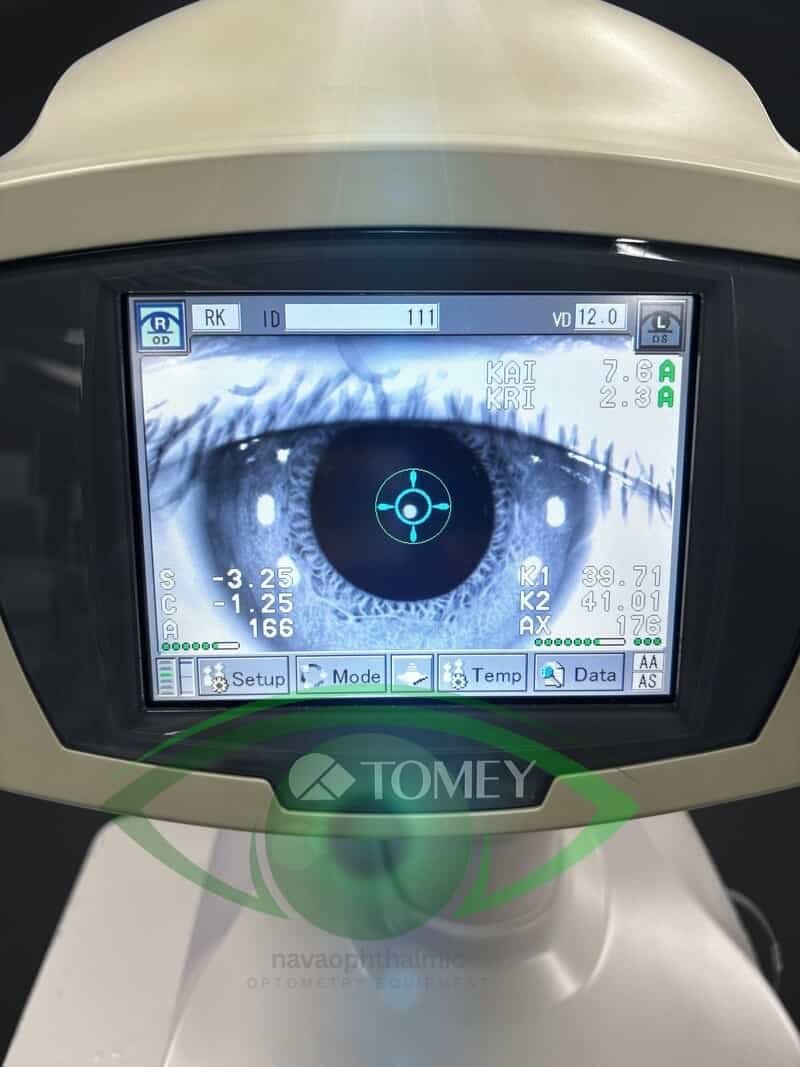

With only one touch, the user can switch from Ref-Keratometer Mode to Corneal Topography Mode and also align the eye center quickly with the center of the screen
Tomey RT-7000 comes with three functions in one unit and supports color TFT LCD, diameter measurement of the cornea and pupil.
Highlights
- Three functions in one instrument
- Easy and Speedy Touch Alignment
- 6.4 inch color TFT LCD
- Dual CCD Technology for Refractometry
- IOL / Cataract Mode
- New Indices for Keratometry: KAI, KRI
- Auto Alignment / Auto Shot for Topography
Three functions in One Instrument
Refractometer, Keratometer and Topographer only in 1 unit. Senior citizens and children can also get the inspection without any trouble because they don’t have to move the seat for three measurements.
Switch from Ref-Kerato Mode to Corneal topography Mode with only ONE TOUCH. The light cone appears with only one button from the measuring head and the Ref-Keratometer is transformed to the Topographer.
RT-7000 SPECIFICATIONS
Measurement Ranges
Refraction Measurement
Sphere: -25.00D to +22.00D (VD=12.0mm)
Cylinder: 0D to ±10.00D (VD=12.0mm)
Axis: 0 to 180º
Corneal Curvature Measurement: 5.00mm to 11.00mm (Measurement Zone: ø 3mm, R:8.00mm)
Corneal Mapping
Display Range: 9 to 100 D, –Normal Mode: ø1.0 to 8.0mm (R:8.0mm), –Special Mode: ø0.9 to 7.0mm (R:8.0mm)
Measurement Time
REF: 0.2 seconds
KRT: 0.1 second
Minimum Pupil Diameter: ø2.2mm
Minimum Measurement Step
Refraction Measurement
Sphere: 0.01D
Cylinder: 0.01D
Axis: 1º
Corneal Curvature Measurement: 0.01mm
PD (Pupil Distance): 50mm to 86mm
Recording: Built-in Thermal Printer
Vertex Distance: 0mm, 12.0mm, 13.5mm, 14.0mm, 15.5mm, 16.0mm
Exterior Output: LAN port / 4USB ports
Dimensions:
Hight: 466mm or 18 inches
Width: 307mm or 12 inches
Depth: 490mm or 19 inches
Weight: Approx. 20.00Kg (44.4lbs)
Display: 6.4 inch color liquid crystal display
Power Supply:
Voltage: AC 100 to 240V
Frequency: 50/60Hz
Consumption Power: 120VA to 150VA
Temperature: + 10Cº to + 40Cº
Display: 30% to 75%
Includes:
- -Tomey RT-7000
- -Power Cable
- -Instruction Guide’s Manual
Tomey RT 7000 Autorefractor Keratometer Topographer has been checked and certified with the 1-year warranty.
